Premium Environmental Test Chamber – High & Low Temperature Test Chamber | Stable Thermal Cycling & Precision Control | Reliable Climate Stress Tester

Marka Adı:	HeJin
Model Numarası:	HJ-EMTC-017
Moq:	1 takım
fiyat:	Negotiatable
Ödeme Şartları:	L/C,T/T
Tedarik Yeteneği:	Ayda 5 set

Ayrıntılı Bilgiler

Ürün Tanımı

Rating & Yorumlar

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Calibration certificate(cost additional)

Ambalaj bilgileri:

kontrplak

Vurgulamak:

high low temperature test chamber

premium environmental test chamber

thermal cycling climate stress tester

Ürün Tanımı

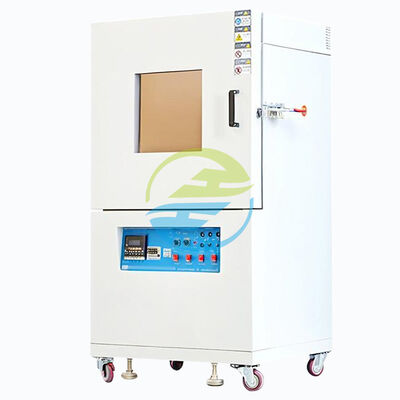

Premium Environmental Test Chamber

High & Low Temperature Test Chamber with Stable Thermal Cycling, Precision Control, and Reliable Climate Stress Testing

Product Overview

HeJin's Environmental Test Chamber subjects parts and materials to rigorous temperature cycling to evaluate their performance under extreme thermal conditions. Engineered for durability and precision, this chamber serves automotive, aerospace, electronics, and manufacturing industries with reliable quality control testing. Features include accurate controls, uniform temperature distribution, and comprehensive safety systems, backed by HeJin's expert support.

International Reference Standards

IEC 60068-2-1 / 2: Cold & Dry Heat Tests – Environmental stress tests for components

IEC 60068-2-14: Thermal shock testing with rapid temperature fluctuations

ASTM D999: Mechanical thermal shock test method

MIL-STD-810G: Environmental engineering considerations & lab tests

ISO 16750: Environmental conditions for automotive electrical testing

GB/T2423: Environmental testing procedures for electric & electronic products

JEDEC JESD22-A104: Temperature cycling testing for semiconductor packages

Key Features

Wide Temperature Range: Supports critical thermal testing with rapid transition rates
High Precision Control: Digital PID controller with high-resolution sensors
Uniform Airflow System: Ensures consistent temperature distribution
Robust Construction: Corrosion-resistant chamber & long-life sealing
Intelligent Safety: Overheat, overcurrent, overpressure protection
Customizable Programs: Multi-segment, repeatable test sequences

Technical Specifications

Item	HJ-EMTC-017-30A	HJ-EMTC-017-45A	HJ-EMTC-017-50A	HJ-EMTC-017-60A
Name	Vacuum Drying Oven	Vacuum Drying Oven	Vacuum Drying Oven	Vacuum Drying Oven
Model	HJ-EMTC-017-30A	HJ-EMTC-017-45A	HJ-EMTC-017-50A	HJ-EMTC-017-60A
Inner Chamber Dimensions	30×30×30 cm	40×40×45 cm	50×50×50 cm	60×60×60 cm
Outer Case Dimensions	50×76×47 cm	60×86×62 cm	79×110×75 cm	89×120×85 cm
Power Supply	220V	220V	380V	380V
Power (KW)	3	4.5	7	7.5
Temperature Range	RT ~ +250°C; Special: RT ~ +400°C	RT ~ +250°C; Special: RT ~ +400°C	RT ~ +250°C; Special: RT ~ +400°C	RT ~ +250°C; Special: RT ~ +400°C
Heating Time	RT ~ +250°C: <40 min; RT ~ +400°C: <55 min	RT ~ +250°C: <40 min; RT ~ +400°C: <55 min	RT ~ +250°C: <40 min; RT ~ +400°C: <55 min	RT ~ +250°C: <40 min; RT ~ +400°C: <55 min
Vacuum Degree (Pa)	<133/cm²	<133/cm²	<133/cm²	<133/cm²
Time Range	1-9999 min	1-9999 min	1-9999 min	1-9999 min
Material	Inner: Mirror-finish stainless steel Outer: SECC cold-rolled steel plate	Inner: Mirror-finish stainless steel Outer: SECC cold-rolled steel plate	Inner: Mirror-finish stainless steel Outer: SECC cold-rolled steel plate	Inner: Mirror-finish stainless steel Outer: SECC cold-rolled steel plate
Uniformity (°C)	±1.5	±1.5	±1.5	±1.5

Applications

Electronics and semiconductor components
Automotive modules and sensors
Batteries and energy storage systems
Aerospace and defense materials

Frequently Asked Questions

Can the temperature range be customized?

Yes, the chamber can be configured to meet specific range requirements upon request.

Does it support data export?

Yes, test logs can be exported via USB or network interface for further analysis.

What safety protections are integrated?

Includes over-temperature, leakage, overload and compressor protection.

What standards does it support?

Designed in accordance with international environmental testing standards.
