Ürün ayrıntıları

Evde Ürünler

Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer

Marka Adı:	HeJin
Model Numarası:	HJ0608A
Moq:	1 takım
fiyat:	Negotiatable
Ödeme Şartları:	T/T,L/C
Tedarik Yeteneği:	Ayda 10 takım

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Third party calibration certificate/ CE(cost additional)

Başvuru:

Ev Aletleri güç kablosu esneme test ekipmanı

Ağırlık:

5N ve 10N

Standart:

IEC 60335-1 şekil 8

Esnek hızı:

0-60 devir/dak, önceden ayarlanabilir

Esneme Açısı:

0-360°, dokunmatik ekranda önceden ayarlanmış

Kontrol yöntemi:

PLC kontrolü, dokunmatik ekran işlemi

Çıkış voltajı:

0-250V

Sürüş modu:

Elektrik

Ambalaj bilgileri:

kontrplak

Vurgulamak:

Touch screen IEC cable flexing tester

Power cord bending test equipment

IEC 60335-1 fatigue life tester

Ürün Tanımı

Touch Screen IEC 60335-1 Cable Flexing Test Equipment

Designed for repeatable and reliable cable bending tests, this IEC 60335-1 compliant Cable Flexing Test Equipment evaluates the mechanical durability and fatigue life of power cords and flexible cables used in household appliances and electrical products.

Manufactured by HeJin, a direct factory specializing in IEC Test Equipment, this system combines precise motion control, touchscreen operation, and long-term stability—helping laboratories and manufacturers verify product safety with confidence.

Compliance Standard

IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 25.14, figure 8.

Key Features

Full compliance with IEC 60335-1 cable flexing test requirements
Touchscreen HMI for easy parameter setting and test monitoring
Stable motor-driven bending mechanism for long-life operation
Adjustable bending angle, speed, and test cycles
Multi-station design available for higher testing efficiency
Accurate cycle counting with automatic stop function

Technical Parameters

Parameters / Model	HJ0608A
Input Power	AC220V 50HZ
Control Method	PLC control, touch screen operation
Station	One. IEC Test Equipment
Drive Mode	Electrical
Flexing Angle	0-360°, preset on the touch screen
Flexing Speed	0-60 cycles/min, can be preset
Test Cycles	0-999999, can be preset
Loading Weight	5N, 10N
Loading Voltage	0-250V, can be regulated
Sample Judgment	Judge the conduction by current

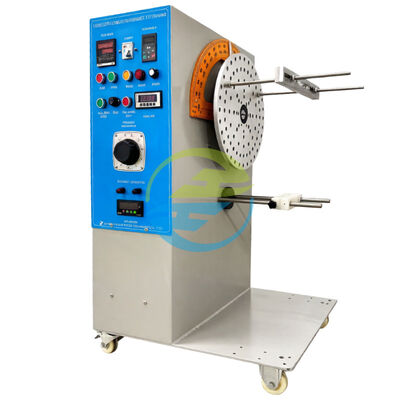

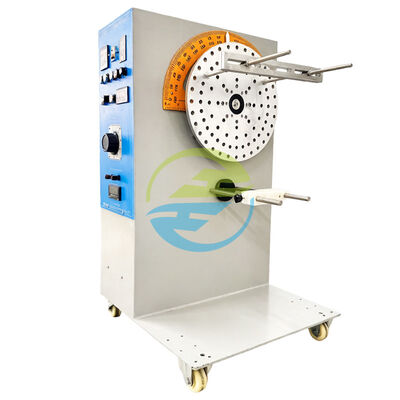

Product Images

Frequently Asked Questions

Can this tester be customized for different cable diameters?

Yes. HeJin customized supports clamps and fixtures for various cable sizes.

Is the machine suitable for certification labs?

Absolutely. It meets IEC 60335-1 requirements and is widely used in accredited labs.

How long can the equipment run continuously?

Designed for long-duration endurance testing with industrial-grade components.

Do you provide installation guidance?

Yes. Remote video guidance and English manuals are included.

Can I integrate this with other IEC test equipment?

Yes. HeJin provides complete IEC Test Equipment solutions.
